Accelerate Multi-Screen Content Delivery
For added flexibility, the QMN Series offers users HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source. Additionally, users can configure UHD daisy chains up to 2x2 in size through the HDMI 2.0 port.
Panel:
Diagonal Size: 98"
Type: 60Hz E-LED BLU
Resolution: 3840*2160 (4K UHD)
Pixel Pitch(mm): 0.187 x 0.562
Active Display Area(mm): 2158.848(H) x 1214.352(V)
Brightness(Typ.): 500 nit
Contrast Ratio: 4000:1
Viewing Angle(H/V): 178/178
Response Time(G-to-G): 6ms (Typ)
Display Colors: 16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut: 72%
Operation Hour: N/A
Haze: 25%
Dynamic C/R: Mega
H-Scanning Frequency: 30 ~ 81kHZ
V-Scanning Frequency: 48 ~ 75HZ
Maximum Pixel Frequency: 594MHz
Speaker Type: Built in Speaker(10W + 10W)

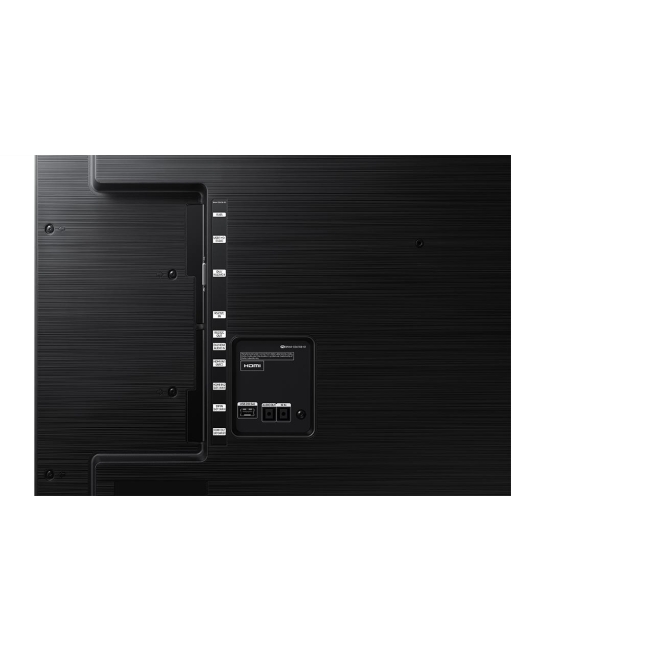

Input:
RGB: DVI-D, Display Port 1.2 (1)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
Audio: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2
Output:
RGB: HDMI 2.0 (Loop-out)
Audio: Stereo mini Jack
External Control: RS232C(in/out) thru stereo jack, RJ45
External Sensor: IR
Type: Internal
Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption:
Max[W/h]: 528
Typical[W/h]: 372
Rating[W/h]: 480
BTU(Max): N/A
Sleep mode: 0.5
Dimension (mm):
Set: 2194.2 x 1249.8 x 71.6 (w/o handle) 2194.2 x 1249.8 x 75.3 (w/ handle)
Package: 2500 x 1618 x 815
Weight (kg):
Set: 77.1
Package: 149.4
VESA Mount (mm): 900x600
Protection Glass: N/A
Stand Type: No
Media Player Option Type: N/A
Bezel Width (mm): 15.2/15.2/15.2
Operating Temperature:
0 ℃ ~ 40 ℃
Humidity: 10 % ~ 80 %
Key Features: UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

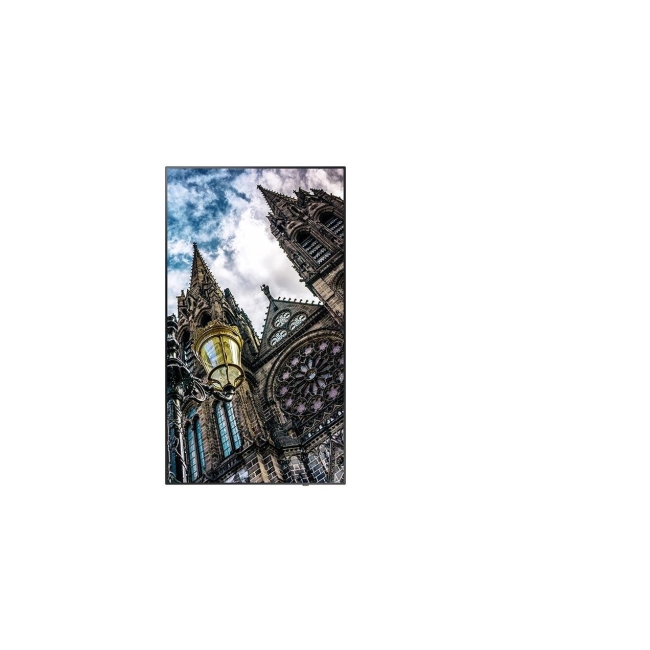

Special Features: H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player:
Processor: Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed: 1.7GHz
Main Memory Interface: 2.5GB LPDDR4 1.5GHz 64bit
Graphics: Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia: *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports: USB 2.0
Operating System: Tizen 4.0 (VDLinux)
Safety: 60950-1
EMC: Class A
Included: Quick Setup Guide, Warranty Card,Power Cord, Remote Controller, Batteries
Optional:
Stand: N/A
Mount: WMN9500SD
Specialty: N/A
Media Player:
Media Player: N/A
